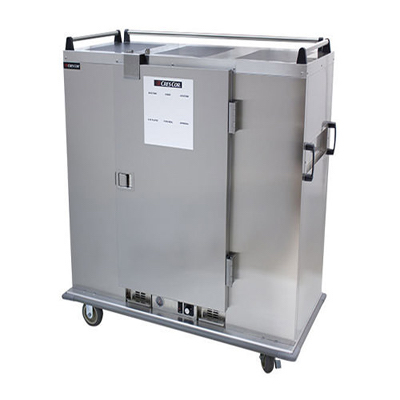

Cres Cor EB-120 Stainless Steel Banquet Cabinet – 120 Plates

Fully insulated banquet cabinet designed
to transport and hold up to (120) 11″ plated
covered meals.
Lower height cabinet for better vision during
transport.
Supplied with three heavy-duty wire grid
shelves spaced on 16-1/2″ centers.
Bottom mount power unit lifts out for easy
cleaning of the inside of the cabinet.
Standard 1500 Watts, 120 Volts, 15 Amps.
Provides quick heat up to 200°F (93°C).
Stainless steel construction throughout for ease
of cleaning.
Bridge handles made of impact and scratch
resistant material on both sides of cabinet.
One piece welded base with perimeter bumper
provides solid foundation to support heavy
loads.
Heavy duty 6″ wheels, two swivel with brakes.
Rolls easily, even over carpeted surfaces.
Staggered mounting provides mobility when
fully loaded especially over uneven surfaces.
Magnetic grease board included.
Many accessories and options to best fit your
needs.
CABINET:
Body: 20 ga. stainless steel.
Reinforcement: Internal framework of 14 ga. Aluminized steel.
Insulation: Fiberglass, thermal conductivity (K factor) is .23 at
75˚F. 1-1/2” in back wall, side walls, door; 2″ in top.
Bridge Handles (2): Impact and scratch resistant material.
BASE:
One piece construction, .190 aluminum, welded.
Casters: 6″ dia., rubber tires, 2-1/8″ wide, load cap. 350 lbs.
each, temp. range -40˚/+160˚F. Zerk fittings in hub. Two rigid
type; two swivel type equipped with brakes.
Perimeter bumper: Gray, non-marking rubber, 1 x 1.
DOORS:
Formed 20 ga. magnetic stainless steel.
Latches: Polished stainless steel, slam type; mounted inboard.
Door gaskets: Perimeter type, silicone.
Hinges: 11 ga. stainless steel, butt type.
SHELVES:
Three shelves. Each shelf made up of nickel chrome plated heavy
duty wire grids. Three wire grids total. Shelves fixed on 16-1/4″
(420 mm) centers. 15.75″ clearance between shelves.
7-3/8″ clearance for top shelf.
HOT UNIT COMPONENTS:
Removable without tools.
Body: Formed 20 ga. non-magnetic stainless steel
Thermostat: Electro-mechanical, ambient to 200˚F (93˚C).
Thermometer: Analog type.
Switch: ON-OFF rocker type, lighted
Power cord: Permanent, 10 ft., 14/3 ga. with molded plug.
Heater (1): 1500 Watt.
Blower motor.
POWER REQUIREMENTS:
1500 Watts, 120 Volts, 60 Hz., single phase, 13.8 Amps., 15 Amp.
service.
