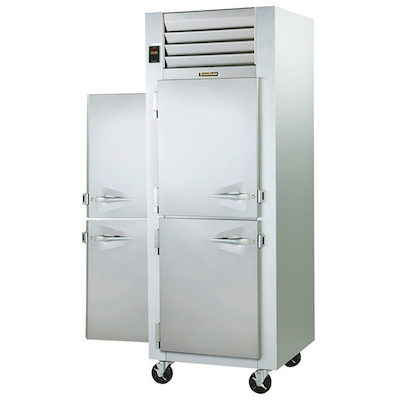

Traulsen G14305P Pass-Through Hot Food Holding Cabinet – Half DoorBrand: Traulsen
High Quality Stainless Steel Exterior Front and Doors
Corrosion Resistant Anodized Aluminum One-Piece Sides
Durable Anodized Aluminum Interior
Microprocessor Control With LED Temperature Readout
Ducted Fan Air Distribution System
Standard Operating Temperature Range 140 to 180°F
One-Time Start-Up Temperature Adjustment Feature
ON/OFF Switch Located On Control Face
Full or Half Length Stainless Steel Doors With Locks
Self-Closing Doors With Stay Open Feature At 120 Degrees
Guaranteed For Life Cam-Lift Hinges
Guaranteed For Life Horizontal Work Flow Door Handles
Automatically Activated LED Lights
Damage Resistant Stainless Steel Breaker Caps
Three (3) Plated Wire Shelves Per Section,
Supported On Pilasters (installed at the factory)
Magnetic Snap-In EZ-Clean Door Gaskets
Gasket-Protecting Anodized Aluminum Door Liner
Stainless Steel One-Piece Louver Assembly
9′ Cord & Plug Attached (one section models only)
Set of Four (4) 6″ High Casters With Locks
Three Year Parts And Labor Warranty
For more information about lease and rent options please call us at (604) 569-3400.
Construction, Hardware and Insulation
Cabinet exterior front, louver assembly and doors are constructed of 20 gauge
stainless steel. Cabinet sides (including returns), interior and door liners are
constructed of anodized aluminum. The exterior cabinet top and bottom are
constructed of heavy gauge aluminized steel. A set of four (4) 6″ high casters are
Doors are equipped with a gasket protecting metal door pan, removable plug
cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal,
glide hinges with stay open feature at 120 degrees. Hinges include a concealed
switch to automatically activate the interior LED lighting. Guaranteed for life,
work flow door handles are mounted horizontally over recess in door which limits
protrusion from door face into aisleways.
Gasket profile and Santoprene® material simplify cleaning and increase overall gasket
life. Anti condensate heaters are located behind each door opening.
Both the cabinet and doors are insulated with an average of 2″ thick high density,
non-CFC, foamed in place polyurethane.
A low watt density, serpentine style, heater is employed for the generation of
electric heat. Low velocity air is forced across its large surface area to efficiently
move heat radiating away from these through a down-air distribution duct, where
it is then evenly distributed throughout the cabinet, assuring the proper holding
environment for hot food product, without drying. A vent, located at the top of the
cabinet, is included for positive humidity control.
The easy to use water resistant microprocessor control system is supplied standard.
It includes a 3-Digit LED Display, and a Fahrenheit or Celsius Temperature Scale
Standard interior arrangements include three (3) plated wire shelves per section,
mounted on pilasters, installed at the factory. Shelves are full-width, and do not
have any large gaps between them requiring the use of “bridge” or “junior shelves.”
Recommended load limit per shelf should not exceed 225 lbs.
A three year parts and labor warranty is provided standard.
Many are ENERGY STAR® listed. Please refer to
www.energystar.gov to view the most up-to-date
product listing and performance data.
