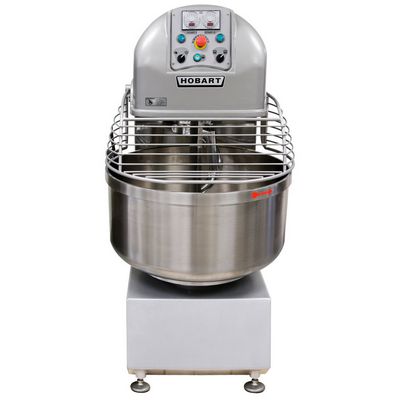

Hobart HSL350-1 Spiral Mixer – 350 lb.Brand: Hobart
Hobart Spiral Mixer HSL350-1 comes with Fixed Bowl, Stainless Steel Wireform Bowl Guard, Dual Electronic Timer Control, Reversible Bowl Drive, Bowl Jog Control.Spec Sheet Warranty
For more information about lease and rent options please call us at (604) 569-3400.
Enter email/phone to get a special price.
High torque, ball bearing, totally enclosed, fan cooled,
polyphase squirrel cage, induction run type. The spiral
arm is two speed 5.0/8.0 H.P. The bowl motor is 1.0 H.P.
208/60/3, 42 amps. ETL Listed for Safety and Sanitation.
Call for additional voltages.
Operator and main control boxes are dustproof.
Magnetic contactors with automatic resetting thermal
overload protection for each motor. “Start-Stop” push
buttons. Reduced voltage fused pilot circuit. Direction
of bowl rotation selectable by rotary switch. Bowl can
be operated without spiral arm using “Bowl Jog” push
button. Unit can operate in continuous mode or with
Wireform, stainless steel. A bowl guard interlock is
provided to prevent spiral arm operation when the
guard is up. Bowl Jog still functions when bowl guard is
open – for ease of removing dough.
Dual electronic timer controls can be set between 0-20
minutes. Time for low and high speeds can be preset to
increase productivity. Mixer will automatically shift from
low to high speed when the time cycle is completed
for low speed. Audible tone informs operator when mix
cycle is completed. Large knob dial simplifies setting
The spiral mix arm and the bowl have separate drive
systems. Each uses a constant mesh helical gear train
that is driven by its motor and multiple belt drive. All
gears are lubricated. All shafts run on ball bearings.
Spiral arm speed “one” is 100 RPM. Speed “two” is
200 RPM. The bowl speed is 15 RPM.
Polished stainless steel, 288-quart capacity with center
Ball bearing mounted front and rear casters allow easy
movement for cleaning. Adjustable front stabilizing feet
Mixer is finished in gray powder coat paint. Top is gray
liquid bicomponent paint.
(Approximate) Net: 1,740 lbs. Shipping: 1,875 lbs.
