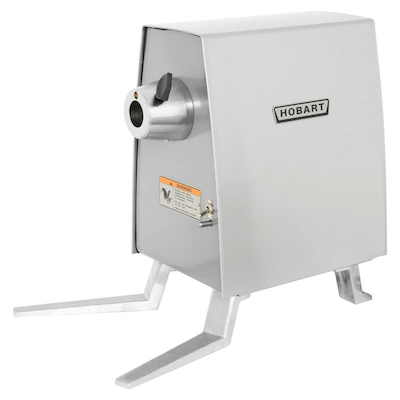

Hobart PD-35 Power Drive – 350 RpmBrand: Hobart
Hobart Power Drive PD-35 comes with 9″ Vegetable Slicer Attachment Only (For Cheese and Vegetables).Stainless Steel Housing.Hardened Steel Output Shaft.1⁄2 H.P. Motor.Spec Sheet Warranty
For more information about lease and rent options please call us at (604) 569-3400.
MOTOR: 1⁄2 H.P., fan cooled, permanently lubricated ball
bearings, capacitor start, induction run, totally enclosed
within the machine.
SWITCH: Manual 2-pole type with integral seal.
CORD & PLUG: 6 foot 3-wire cord and grounding type plug.
TRANSMISSION: Wide Poly-V belt running on steel drive
and cast aluminum driven pulleys. Output shaft hardened
steel, mounted in sealed grease-packed needle bearings.
HOUSING: Stainless steel cover secured to heavy painted
DETAILS AND DIMENSIONS
ATTACHMENT MOUNTING: Heavy cast iron hub, No. 12
size; accepts the No. 12 9″ Vegetable Slicer secured by
heavy duty thumb screw.
OUTPUT: Model PD35 operates at 350 RPM and model
PD70 operates at 700 RPM. Both are suited for driving the
9″ Vegetable Slicer.
MOUNTING: Equipped with cast aluminum legs on
neoprene pads. Two mounting positions are provided for
the extended front legs.
FINISH: Satin finish stainless cover, bright chrome
attachment hub, gray finish steel frame.
WEIGHT: Net 59 lbs.; Shipping 65 lbs.
