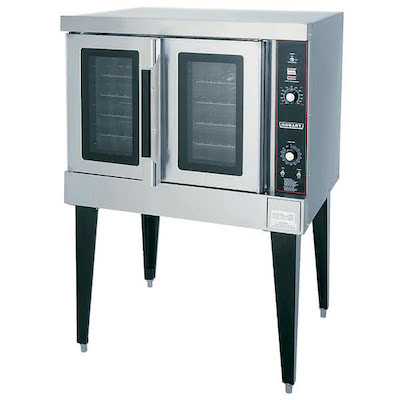

Hobart HEC501 Full Size Electric Convection Oven – 208/240V, Single DeckBrand: Hobart
Stainless steel front, sides and top
Stainless steel doors with double pane windows
12.5 KW input per deck
1⁄2 H.P. two speed oven blower motors
Solid state temperature controls adjust from
150° to 500°F
60 minute timer per deck with audible alarm
Oven cool switch for rapid cool down
Porcelain enamel on steel oven interior
Five nickel plated oven racks with eleven rack
positions per deck
208 or 240 volt, 60 Hz, 1 or 3 phase
One year limited parts and labor warranty
For more information about lease and rent options please call us at (604) 569-3400.
General: Electric convection oven. Basic deck
(HEC5/HEC5D) is without legs; may be ordered
separately for replacement, for stacking 2-high or for
mounting on legs. HEC501/HEC501D single basic
deck on 23 3⁄4″ legs with feet. 23 3⁄4″ legs can adjust an
additional 1″ in length. Legs with casters are adjustable from 28″ to 29 1⁄8″ in length. HEC502/HEC502D
two basic HEC5/HEC5D decks on 8″ legs.
Construction: Stainless steel front, sides, top and
back, painted legs. Porcelain enamel on steel oven
interior. Simultaneously operated stainless steel
doors with windows. Two interior oven lights per
deck. Non-sag insulation applied to the top, rear,
sides, bottom and doors.
Oven interior measures 29″w x 22 1⁄8″d x 20″h. Five
nickel plated oven racks per deck measure 28 1⁄4″ x
20 1⁄2″. Eleven position nickel plated rack guides with
positive rack stops per deck.
Controls: Temperature controls adjust from 150° to
500°F. 60-minute timer with audible alarm. Oven cool
switch for rapid cool down.
Electrical: One 1⁄2 H.P. two-speed oven blower-motor
per deck. Rated power input is 12.5 KW per deck.
208 or 240 volts, 60 Hz, 1 or 3 phase.
