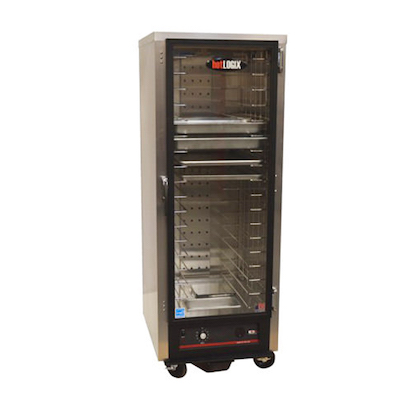

Carter-Hoffmann HL4-5 HotLogix Heated Holding & Proofing Cabinet – 10 PanBrand: Carter-Hoffmann
ACTIVE HEAT & HUMIDITY
SYSTEM… Heat duct provides
even and efficient heating
throughout the entire cabinet for
safe and consistent results. Quick
heat and humidity recovery.
Proofing and holding can be
accomplished in one cabinet. Unit
provides full power to both heating
and humidity elements regardless
of whether you are holding or
DRIP TROUGH… Located at base
of cabinet to catch condensation.
Drain hole in center. Plastic drip
pan below trough (provided) to
EASY-TO-USE DIAL CONTROLS… From proofing to
holding, control heat and humidity with separate
analog dials and master on/off switch. Temperature
range of 85°F to 190°F. Easy to read digital
thermometer and recessed control dials, angled for
easier reach. Proofing and holding capability in single
cabinet. Cabinet can be operated without humidity
PAN SLIDES… Universal
wire slides at fixed spacing
of 3”. Assemblies
removable. Hold 18”x26”
sheet pans, 12”x20” steam
table pans, 2/1 or 1/2 G/N
pans. Adjustable universal
stainless steel pans slides
or fixed angle slides are
FIELD REVERSIBLE DOOR(S)…
Wobble-free, single pane
tempered glass door for easy
viewing of cabinet contents, with
magnetic door latch and heavyduty hinges. Full perimeter
santoprene gasket attached to
door for best seal.
FOUR SIZES… HL4 series
cabinets are available in undercounter, 1/2 size, 3/4 size and full
Rent: $48 / week
Lease: $102 / mo.
For more information about lease and rent options please call us at (604) 569-3400.
$4,200Enter email/phone to get a special price.
CONSTRUCTION…Welded & riveted double
wall, insulated cabinet construction with
cabinet welded to base.
CABINET MATERIAL…All aluminum interior
and exterior double wall, insulated
construction; .063 aluminum exterior with 2V
finish. Base frame: .125 natural aluminum.
CASTERS…5” diameter casters with rubber
tread. Four swivel casters. Two casters fitted
DOOR…Single panel tempered glass door
set in extruded black anodized aluminum
frame. Field reversible. Full width aluminum
drip trough with 1/2” drain at base of door.
Removable plastic catch pan mounted
under base of cabinet. High temperature
santoprene gasket mounted to door.
HINGES…Adjustable edge mount hinges
with chrome plate finish.
LATCH…Heavy-duty edge mount latch with
INSULATION… 1” thick high density
continuous wrap-around insulation in sides
TRAY RACK ASSEMBLIES… Universal
wire slides at fixed spacing of 3”.
Assemblies removable. Hold 18”x26” sheet
pans, 12”x20” steam table pans, 2/1 or 1/2
THERMOMETER…Digital thermometer with
remote sensing bulb and sensing bulb
protector. Displays temperature in one
CONTROLS…Dial type controls. One dial
for heat and one dial for humidity level. Set
temperature dial at 3 and humidity dial at 7+
for proofing (approximate temperature of
85°-100°F and 90-95% humidity).
WATER RESERVOIR…Bottom mounted
stainless steel water reservoir is part of
heater assembly. Element mounted below
pan to provide active humidification. Manual
fill. Capacity 2.5 quarts.
HEAT & HUMIDITY SYSTEM…Bottom
mounted heater with one 1700 watt coiled
incoloy-sheathed heating element. High
impedence protected fan motor. Water
reservoir with 350 watt element affixed to
bottom. Blower fan circulates air and
humidity. Full range thermostat and on/off
switch with power indicating light. Separate
dial controls for heat and humidity.
Operates on 120 volts, 60 cycle, single
phase, 2100 watts, 17.5 amps. Eight foot
rubber cord with 3 prong grounding plug.
NEMA 5-20P. See low wattage options
PERFORMANCE…Capable of heating to
190°F (88°C). Preheat to 160°F (71°C) in
approximately 20 minutes. 95% maximum
relative humidity. Low wattage options will
