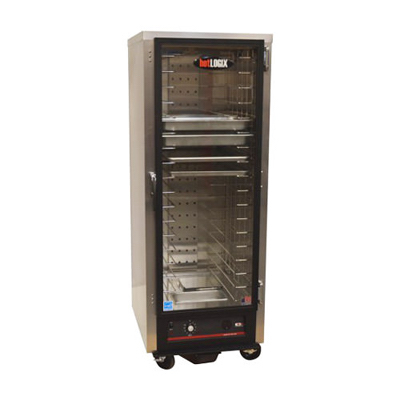

Carter-Hoffmann HL3-18 HotLogix Heated Holding Cabinet – 218 Lb


DUCT SYSTEM… Heat duct
provides even and efficient heating
throughout the entire cabinet for
safe and consistent results.
FOUR SIZES… Logix1 series
cabinets are available in undercounter, 1/2 size, 3/4 size and full
Wobble-free single pane tempered
glass door for easy viewing of
cabinet contents, with magnetic
door latch and heavy-duty hinges.
Full perimeter santoprene gasket
attached to door for best seal.
EASY-TO-USE DIAL CONTROL… Simple analog dial
for heat setting and master on/off switch. Temperature
range of 85°F to 190°F. Recessed angle control panel
with easy to read digital thermometer.
PAN SLIDES… Universal
wire slide at fixed spacing
of 3”. Assemblies
removable. Hold 18”x26”
sheet pans, 12”x20” steam
table pans, 2/1 or 1/2 G/N
pans. Adjustable universal
stainless steel pan slides or
fixed angle slides are

Spec Sheet Warranty

Rent: $38 / week

Lease: $80 / mo.

For more information about lease and rent options please call us at (604) 569-3400.

$3,310Enter email/phone to get a special price.

CONSTRUCTION…Welded & riveted double
wall, insulated cabinet construction with
cabinet welded to base.
CABINET MATERIAL…All aluminum interior
and exterior double wall, insulated
construction; .063 aluminum exterior with 2V
BASE FRAME… .125 natural aluminum
CASTERS…5” diameter casters with rubber
tread. Four swivel casters. Two casters fitted
with brakes.
DOOR…Single panel tempered glass door
set in extruded black anodized aluminum
frame. Field reversible. Full width aluminum
drip trough with 1/2” drain located at base of
door. Removable plastic catch pan mounted
under base of cabinet. High temperature
santoprene gasket mounted to door.
HINGES…Adjustable edge mount hinges
with chrome plate finish.
LATCH…Heavy-duty edge mount latch with
magnetic catch.
INSULATION… 1” thick high density
continuous wrap-around insulation in sides
and top.
wire slides at fixed spacing of 3”.
Assemblies removable. Hold 18”x26” sheet
pans, 12”x20” steam table pans, 2/1 or 1/2
G/N pans.
THERMOMETER…Digital thermometer with
remote sensing bulb and sensing bulb
protector. Displays temperature in one
degree increments.
CONTROLS…Single dial for heat setting.
WATER RESERVOIR…Bottom mounted
stainless steel water reservoir is part of
heater assembly. Passive evaporative
humidification provided. Manual fill. Capacity
2.5 quarts.
HEATING SYSTEM…Bottom mounted
heater with one 1700 watt coiled incoloysheathed heating element. High impedence
protected fan motor. Blower fan circulates
air. Full range thermostat and on/off switch
with power indicating light. Dial control for
heat settings.
Operates on 120 volts, 60 cycle, single
phase, 1750 watts, 15 amps. Eight foot
rubber cord with 3 prong grounding plug.
NEMA 5-20P. See low wattage options
PERFORMANCE…Capable of heating to
190°F (88°C). Preheat to 160°F (71°C) in
approximately 30 minutes. Low wattage
options will affect cabinet performance.
